Description

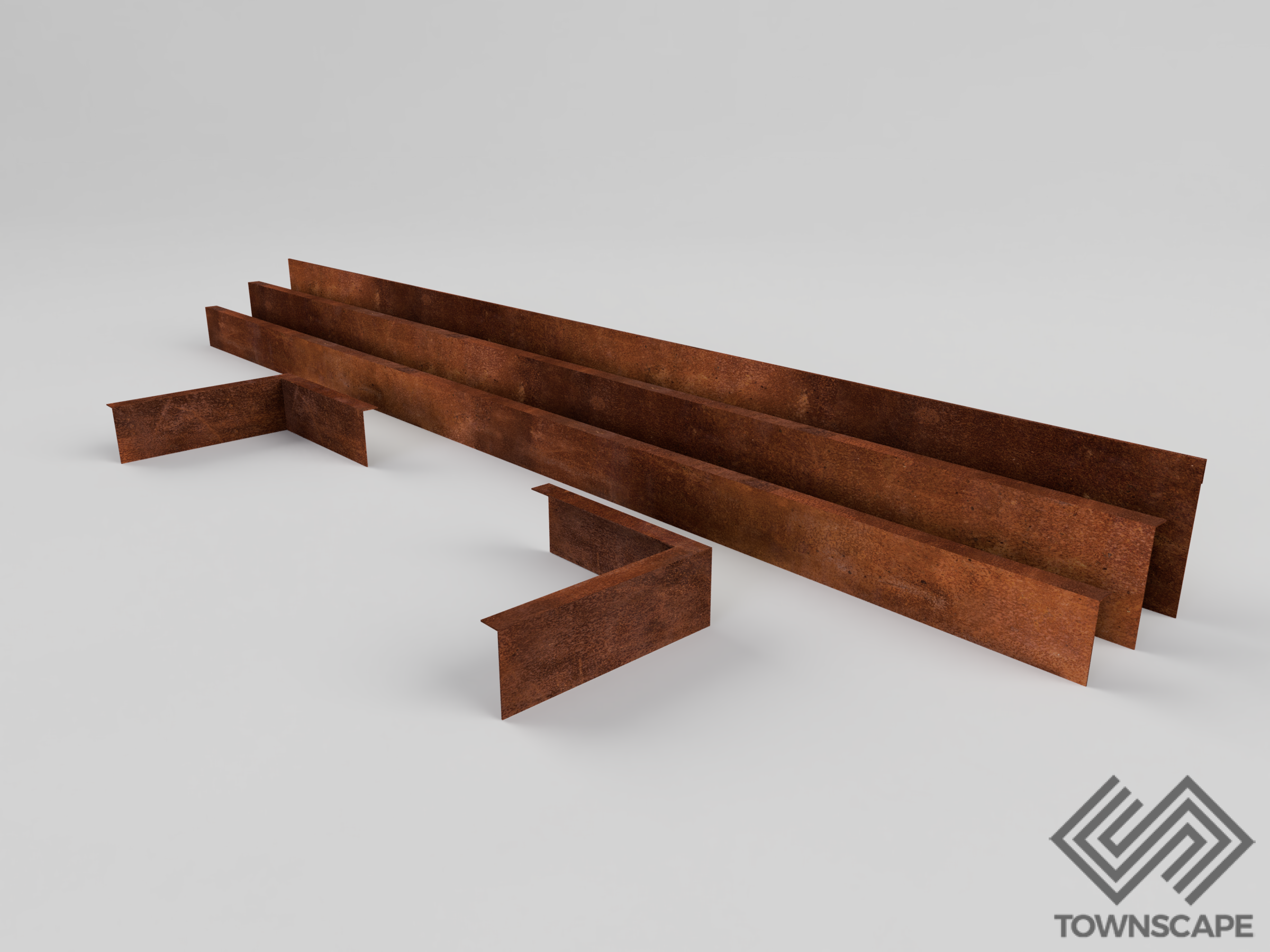

Townscape Corten Edges are 2300mm in length as standard and come in 2 styles (Set Top Edge or Flattened Top Edge). See spec sheet for detail of corner pieces

Installation
For Installation advise contact the sales office.

Finish Pre-weathered Corten finish. The planters will continue to weather until a uniform finish is achieved over a period of 18 months. Fully weathered options can also be specified.



Range CORTEN Edges
Installation Surface Mounted
Materials Standard Part Weathered CORTEN Steel
Gauge 2/3mm
Height above Ground 100-390mm
Unit Weight 5-23kg



SKU Set Top Edge SKU Flat Top Edge Dimensions L x D x H Unit Weight Gauge
PLT/0220 100/2 PLT/0220F 100/2  2300 x 2 x 100 5kg  2mm
PLT/0220 150/2 PLT/0220F 150/2  2300 x 2 x 150 7kg  2mm
PLT/0220 200/2 PLT/0220F 200/2  2300 x 2 x 200 8kg  2mm
PLT/0220 290/2 PLT/0220F 290/2  2300 x 2 x 290 12kg  2mm
PLT/0220 390/2 PLT/0220F 390/2  2300 x 2 x 390 15kg  2mm
PLT/0220 150/3 PLT/0220F 150/3  2300 x 3 x 150 10kg  3mm
PLT/0220 200/3 PLT/0220F 200/3  2300 x 3 x 200 8kg  3mm
PLT/0220 290/3 PLT/0220F 290/3  2300 x 3 x 290 12kg  3mm
PLT/0220 390/3 PLT/0220 390/3  2300 x 3 x 390 15kg  3mm



NOTE! When specifying corner pieces add the length and gauge to the end of the code, e.g for a 200mm tall Set Top Edge Internal corner at 2mm thickness the full SKU would be PLT/0220CI 200/2. See Specsheet for more examples.



SKU Corner  Internal/External Dimensions L x D Gauge Height
PLT/0220CI Internal  300 x 300 5kg  70-390mm
PLT/0220CE External 300 x 300 7kg  70-390mm
PLT/0220FCI Internal 300 x 300 8kg  70-390mm
PLT/0220FCE External 300 x 300 8kg  70-390mm
