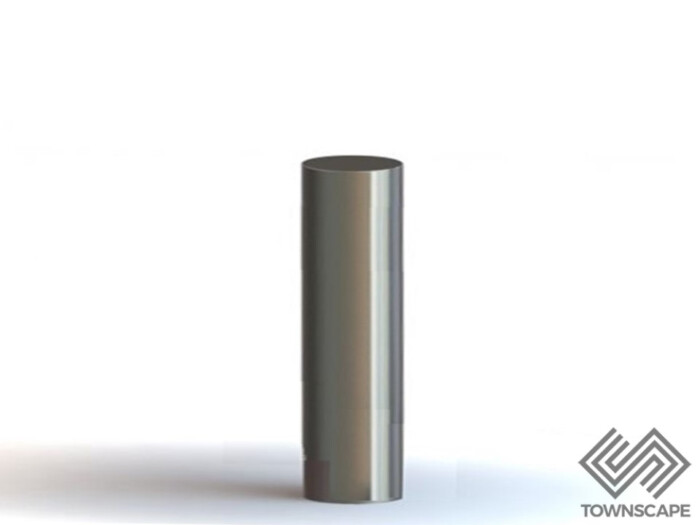

CT 50 N3/02 Mild Steel Counter Terror Bollard – 273mm – Below Ground Fix – Galvanised Finish. The CT50 N3/02 is a high security bollard designed to mitigate a vehicle attack at 64kph. The bollard has been successfully tested and approved by the CPNI. The normal spacing for bollards will be 1200mm. A reinforced foundation design will be required for this product. The product is PAS 68:2010 approved to the following classifications:

40mph Test – Fixed Bollard: V/7500[N2]/64/90.10.6/11.1

Additional cost sleeve options are available if required. These include Stainless Steel or Performa-Cast Polymer (Standard or Bespoke designs) Sleeves.


For advice about installation of this product, please contact our sales office.


If dimensions are critical please contact sales to confirm

Range CT Bollards
Installation 600mm depth
Materials Specialist Grade Steel
Dimensions W x D x H Mild Steel
Height Above Ground 1000mm
Unit Weight 1000mm
Below Ground 160kg
