Description

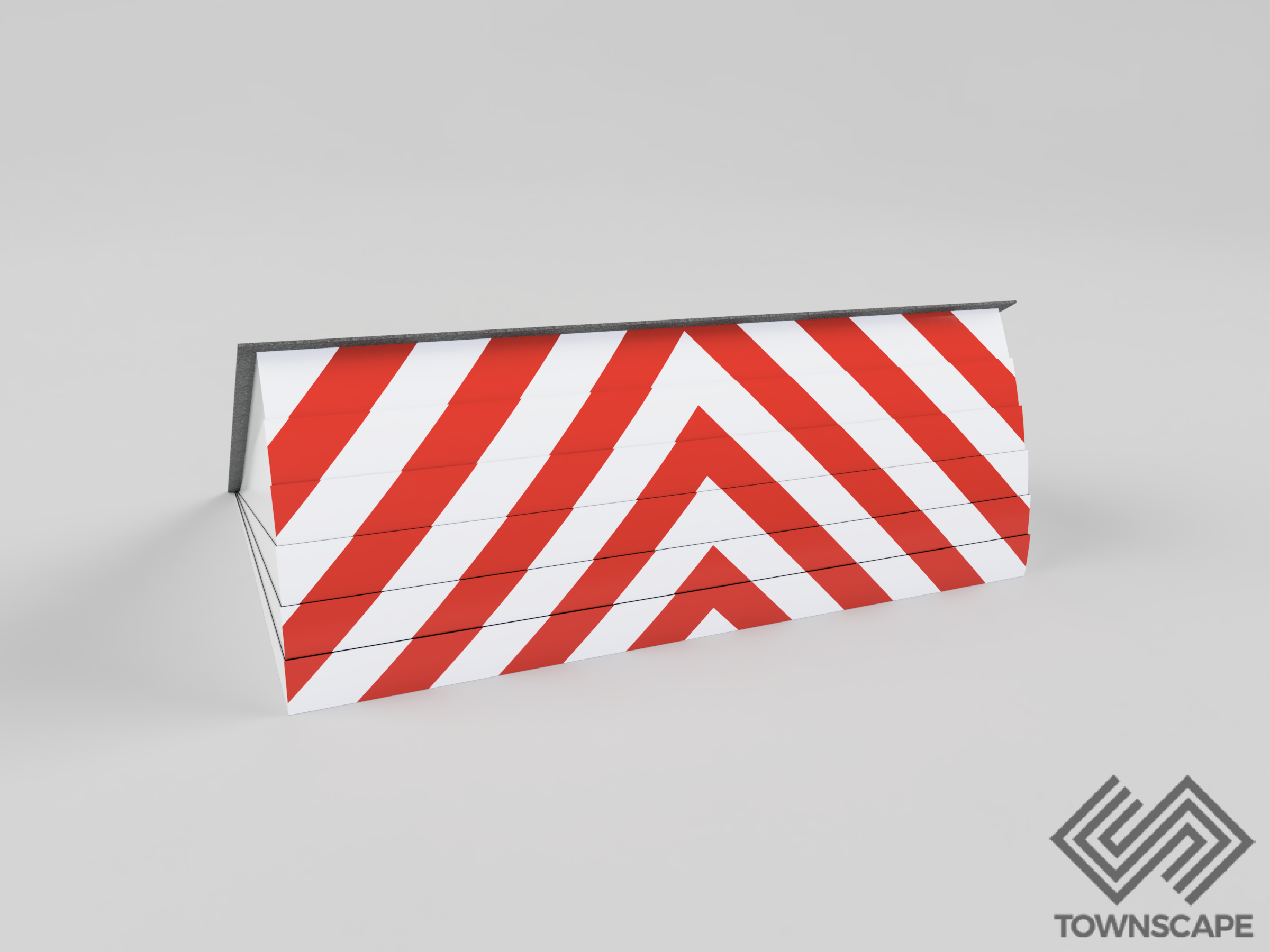

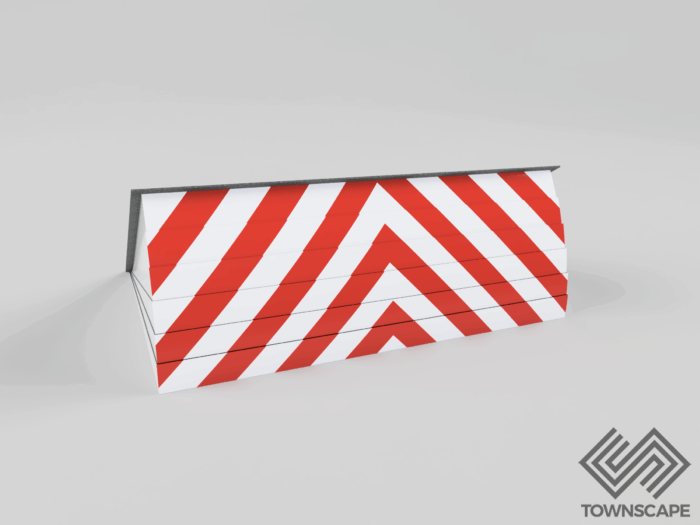

Townscape CT50 Wedge barrier is a IWA 14 Tested automated hydraulic barrier system. This product tested with 0.1m penetration depth.

This product has been IWA 14 tested to the following classifications:
IWA14 7200[N2A]80/90.0.1

Bespoke sizing and Other RAL colours / finishes also available.

Installation

For advice about the installation of this product, please contact our sales office.

Dimensions

If dimensions are critical please contact sales to confirm

Tested Dimensions 3000mm wide, 1000mm height
Available Dimensions Widths up to 4000mm
Securing Apertures 6400mm
Embedment Depth 300mm – Type B
Foundation Depth 500mm
Operating Speeds 2-6 Seconds depending on configuration
Control Cabinet Foundations 800x800x300mm
