Description

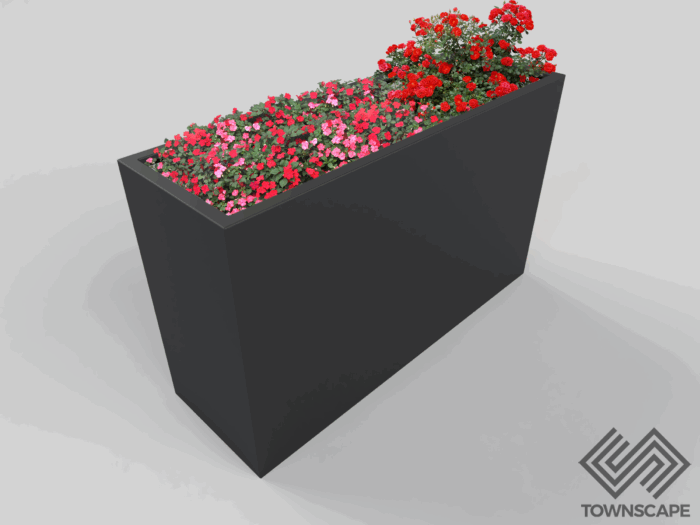

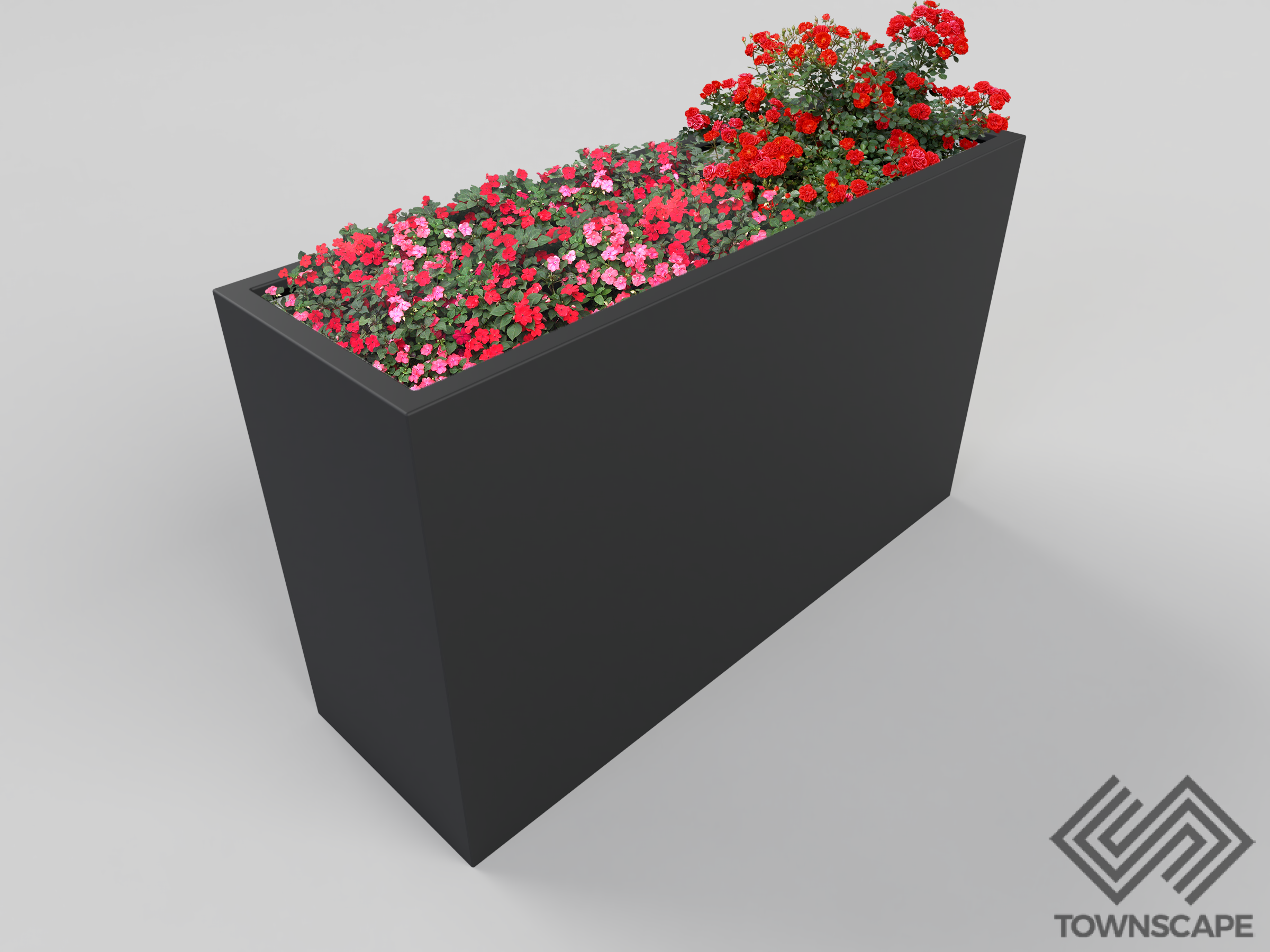

Victoria 50 Hostile Vehicle Mitigation Steel Planter, Shallow Mount from 200-300mm. A robust planter in a choice of steel (see specification sheet), supplied with an integrated galvanised mild steel liner. The planter is fitted with 2no. CT50 N3/02 Low Penetration Counter Terror Bollards (Product ID: VED/0015SMSC) supplied. The Townscape Counter Terror Bollards in this product are IWA 14 approved to the following classification:

50mph Test: PAS 68:2010 V/7200/80/90:3.8/

Bespoke sizing and Other RAL colours / finishes also available.

Installation

For advice about the installation of this product, please contact our sales office.

Dimensions

If dimensions are critical please contact sales to confirm

Range CT Victoria Planters
Installation PAS 68 depth 200-300mm
Materials Range of Steels
Dimensions W x D x H Planter 1945 x 600 x 1100
Height above Ground 1100
Unit Weight 450kg (all elements)



Material SKU Code
Corten VED/0501CS
PC Mild Steel  VED/0501PC
Brushed Stainless Stee VED/0501SS
PC Stainless Steel Profile VED/0501SSP
Aluminium VED/0501A
