Description

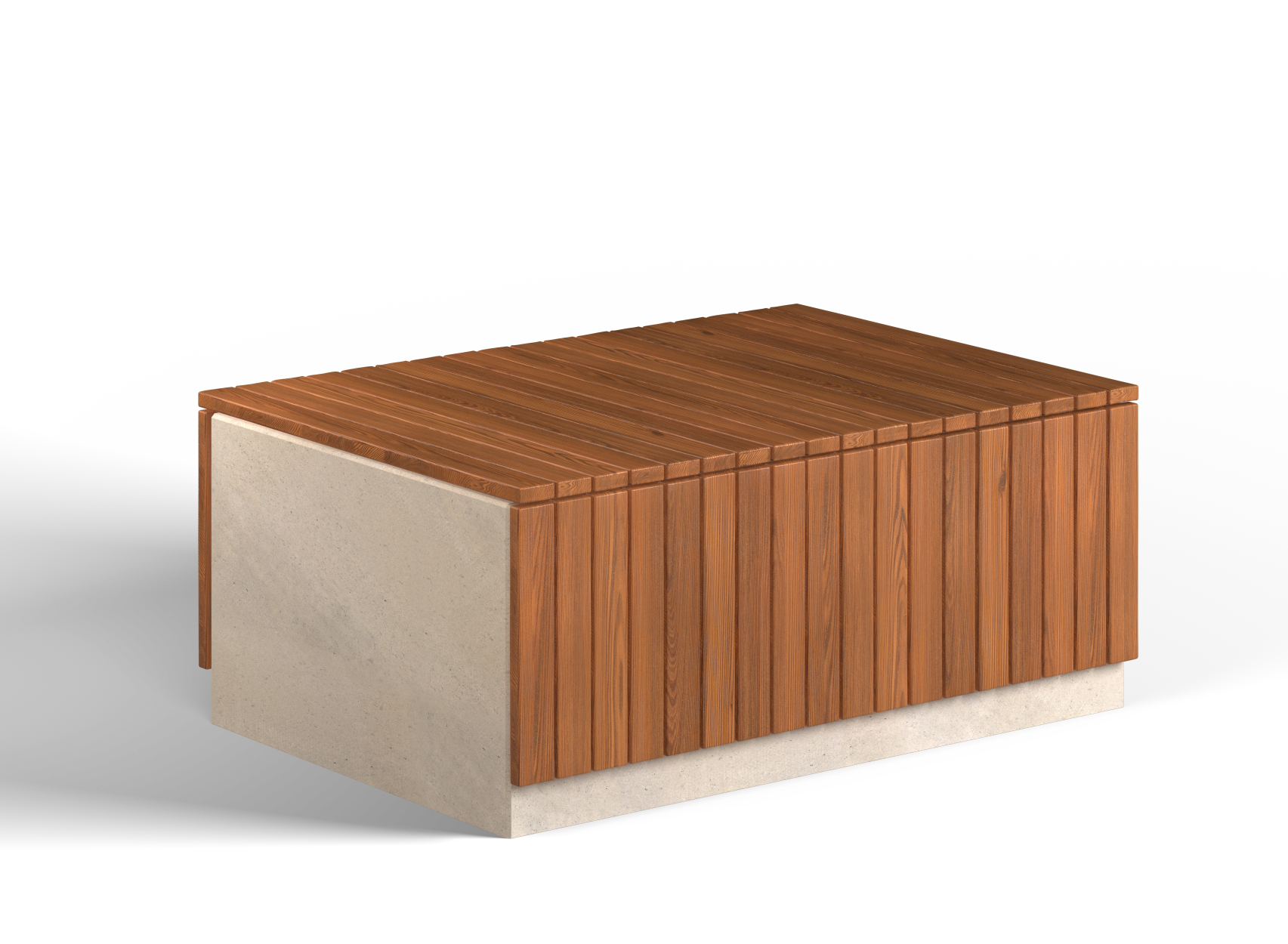

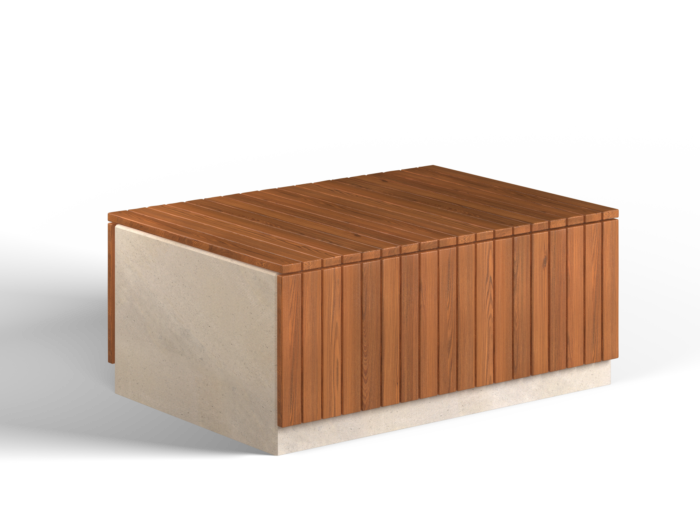

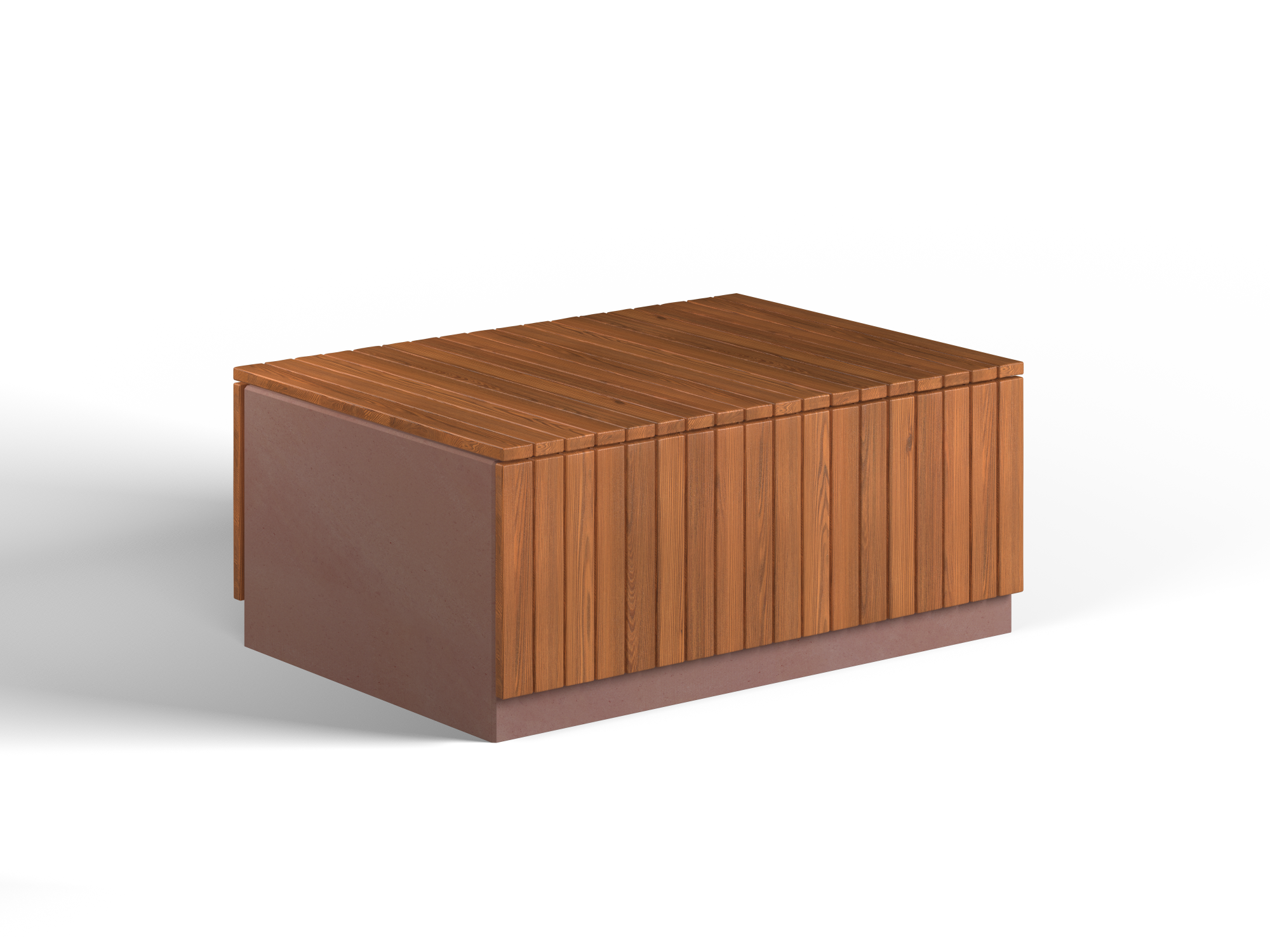

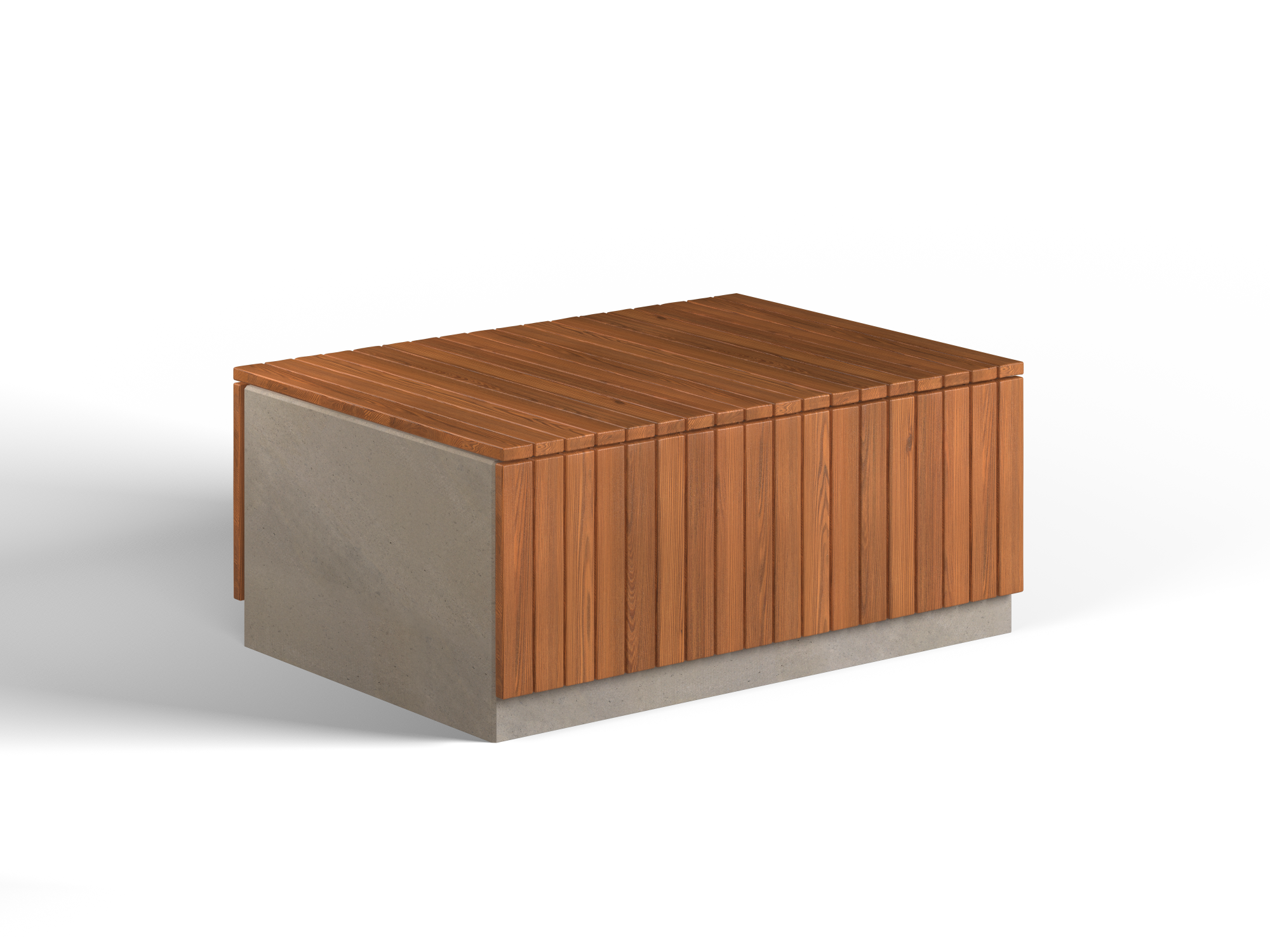

The Townscape CT Range are crash tested hostile vehicle mitigation measures designed to protect public spaces from vehicle attacks. These products have an independently verified performance. The 1490mm Counter Terror Block Vehicle Defence Barrier has a 15mm chamfered edge as standard and is available in a number of artisan precast finishes as below. The block has a Deck Timber Seat and  Cladding to 2 sides (Long Sides). PAS 68:2010 tested to the following classifications:

30mph test – single block: V/7500/N2/48/90/6.6/0.0
40mph test – single block: V/7500/N2/64/90/12.3/2.2

And PAS 68:2005 tested to the following classification:

30mph test comprising 3 staggered blocks: V/7500/N2/48/60/2.0/0.0

(Tested block size 1490 x 990 x 600mm)

This product is available in a range of Premier smooth and exposed aggregate finishes.

Contact the sales office for more specialist information about this product and additional sizing options.  Installation advice is available for this product. The standard Timber we use is Hardwood Sapele Timber. Other timber including FSC options is also available.

Dimensions

If dimensions are critical please contact sales to confirm



Range Vehicle Defence
Installation 100mm
Materials Artisan Precast Concrete
Dimensions W x D x H 1490 x 1070 x 640mm
Height above Ground 540mm
Unit Weight 2290kg
