Description

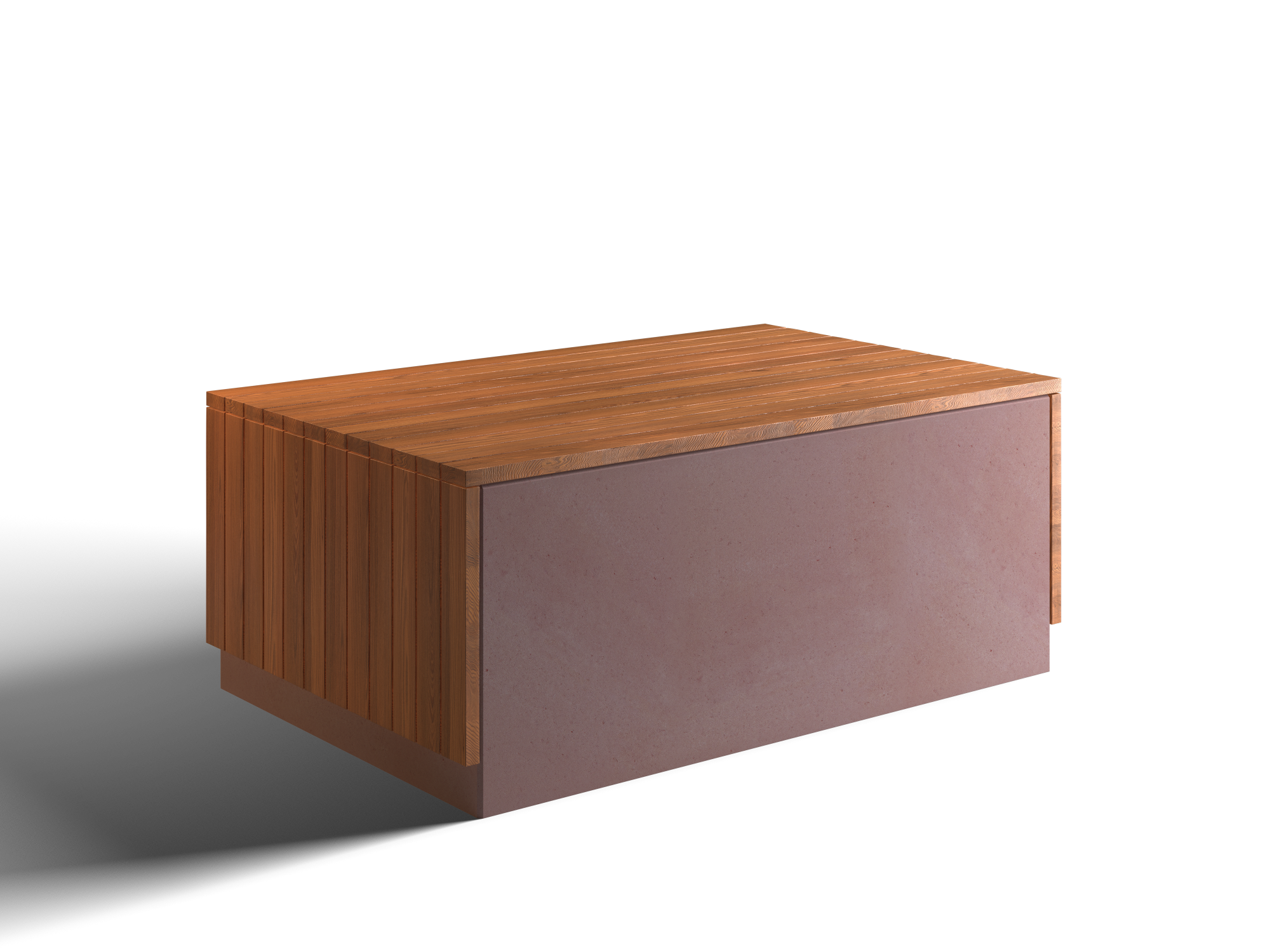

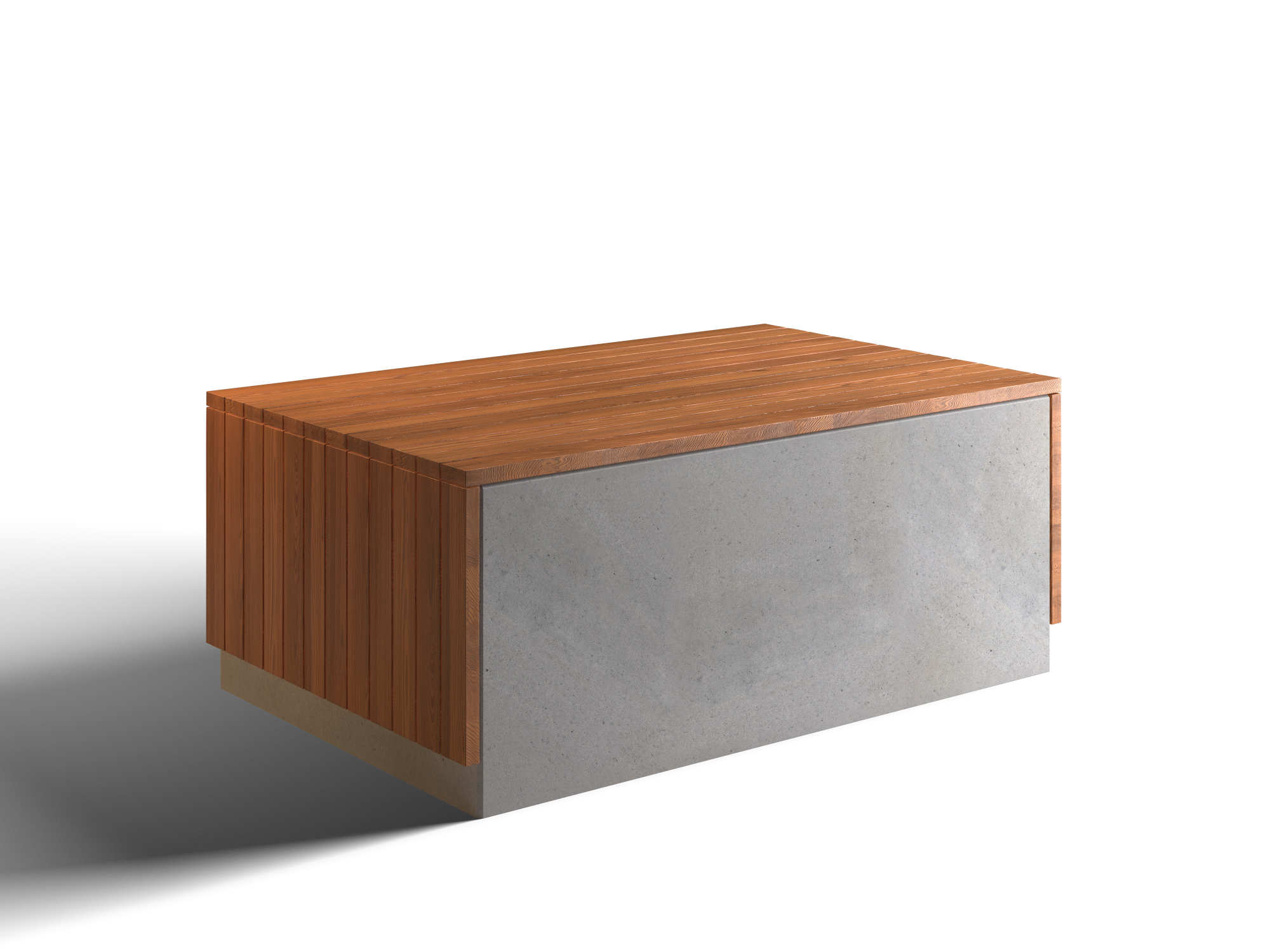

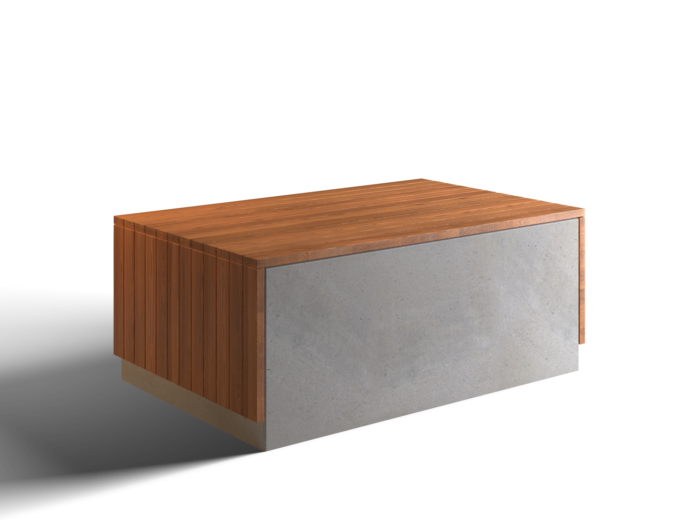

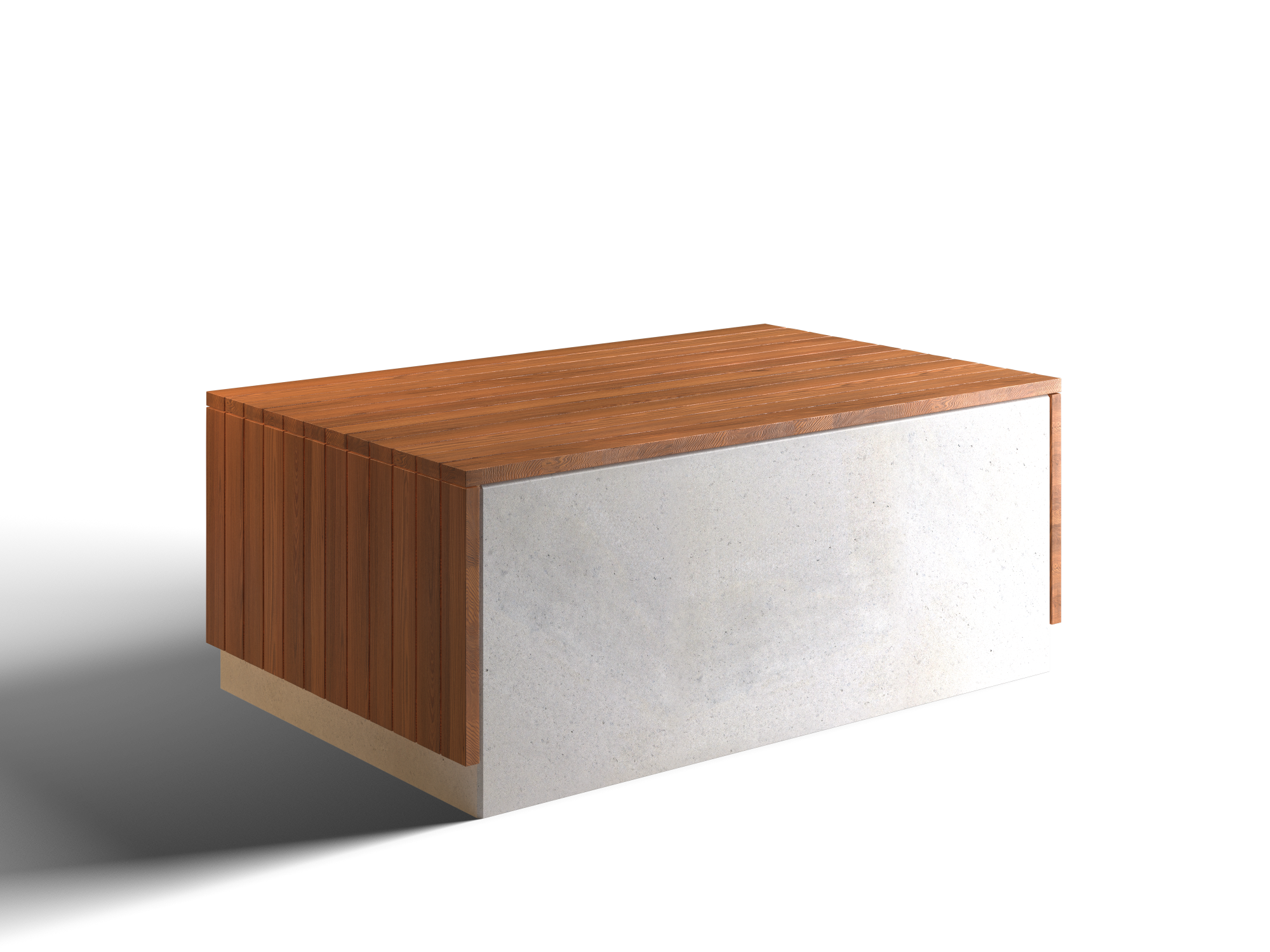

Hostile Vehicle Mitigation Counter Terror Block Vehicle Defence Barrier 150 with 15mm Chamfered Edges, complete with hardwood timber seat to the top and two short sides.

Complete with Bishopsgate Hardwood Seat.

The Townscape Counter Terror Block is PAS 68:2010 tested to the following classifications:

30mph test – single block: V/7500/N2/48/90/6.6/0.0
40mph test – single block: V/7500/N2/64/90/12.3/2.2

And PAS 68:2005 tested to the following classification:

30mph test comprising 3 staggered blocks: V/7500/N2/48/60/2.0/0.0

(Tested block size 1490 x 990 x 600mm)

This product is available in a range of Premier smooth and exposed aggregate finishes.

Contact the sales office for more specialist information about this product and additional sizing options.  Installation advice is available for this product. The standard Timber we use is Hardwood Sapele Timber. Other timber including FSC options is also available.

Dimensions

If dimensions are critical please contact sales to confirm

Range Vehicle Defence
Installation 100mm
Materials Artisan Precast Concrete
Dimensions W x D x H 1570 x 990 x 640mm
Height above Ground 540mm
Unit Weight 2260kg
