CT Block Planter 1790 – Ultra shallow Mount

Description

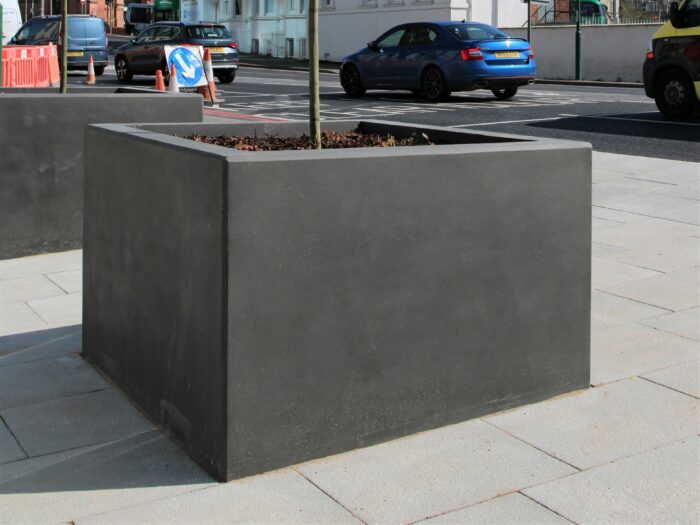

The Townscape CT Range are crash tested hostile vehicle mitigation measures designed to protect public spaces from vehicle attacks. These products have an independently verified performance. The CT Block Planter 1790mm Square Counter Terror Block Vehicle Defence Barrier with a 15mm chamfered edge as standard. Available in a number of artisan precast finishes as below.

This Product is a variant of the tested size.

The Townscape 1490 x 990 x 600 Counter Terror Block is PAS 68:2010 tested to the following classifications:

30mph test – single block: V/7500/N2/48/90/6.6/0.0
40mph test – single block: V/7500/N2/64/90/12.3/2.2

And PAS 68:2005 tested to the following classification:

30mph test comprising 3 staggered blocks: V/7500/N2/48/60/2.0/0.0

(Tested block size 1490 x 990 x 600mm)

This product is available in a range of Premier smooth and exposed aggregate finishes.

Contact the sales office for more specialist information about this product.  Installation advice is available for this product

Installation
Surface should be flat . Lift planter into position. Ensure permeable material immediately at drainage outfall location. Once positioning is correct place a layer of Terram 1000 or equivalent into the base of the planter. Add 100mm of pea shingle onto of the filter membrane. Add additional water reservoir if needed. Plant the liner using the specified medium and plant from the horticultural specialist.

Dimensions

If dimensions are critical please contact sales to confirm
