Description

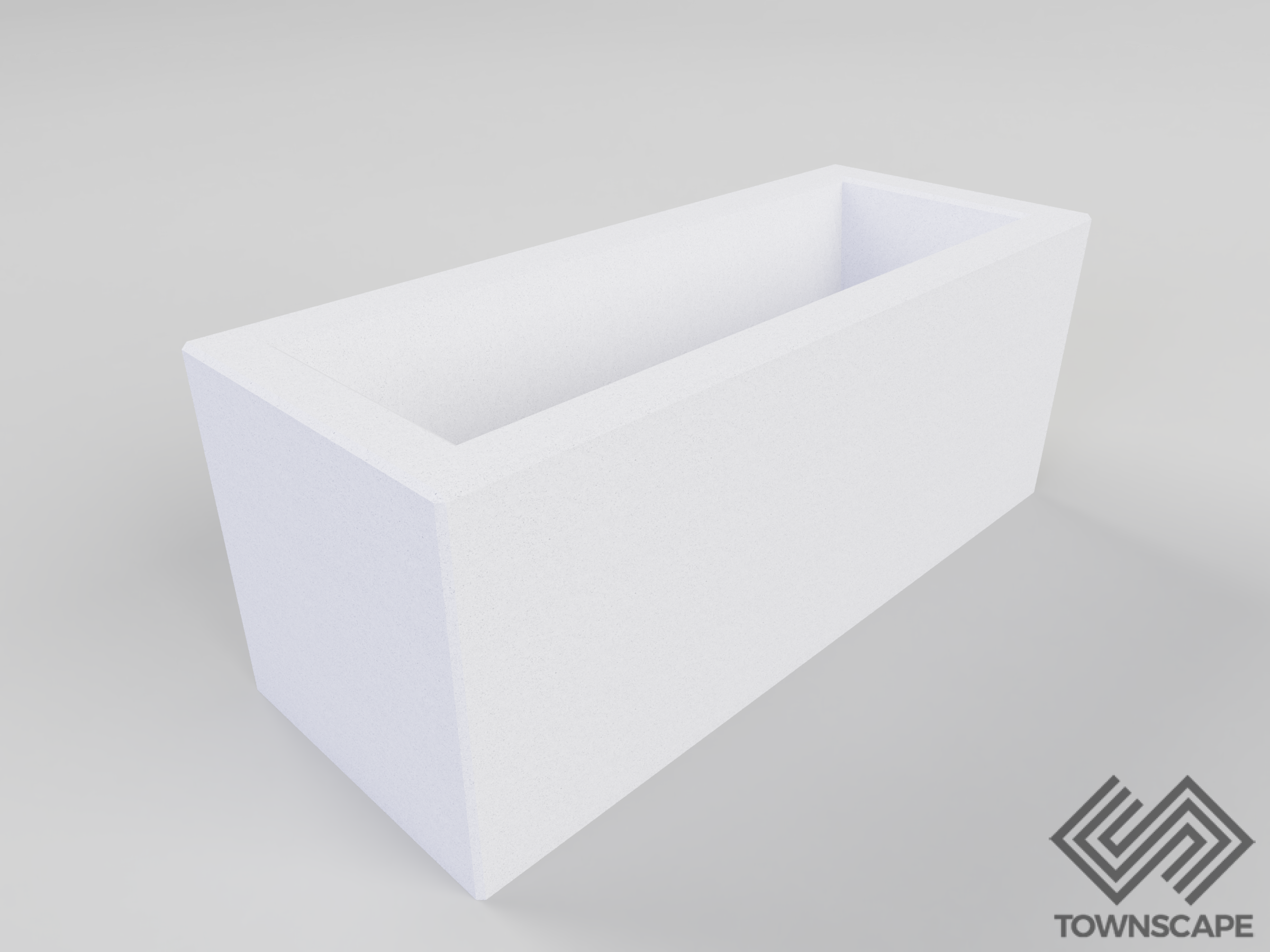

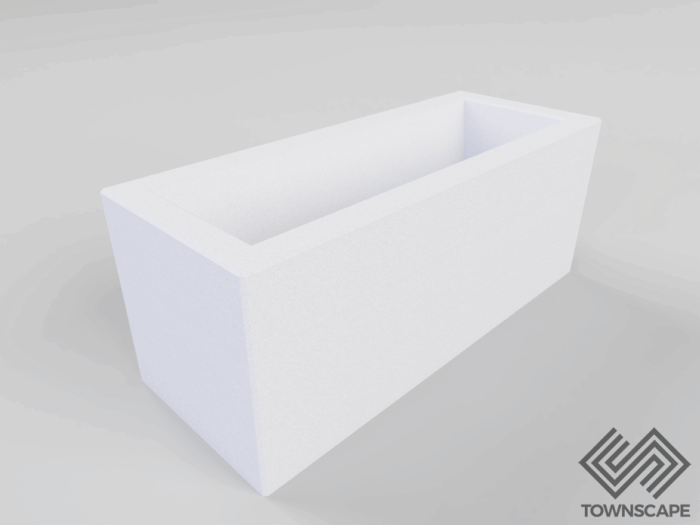

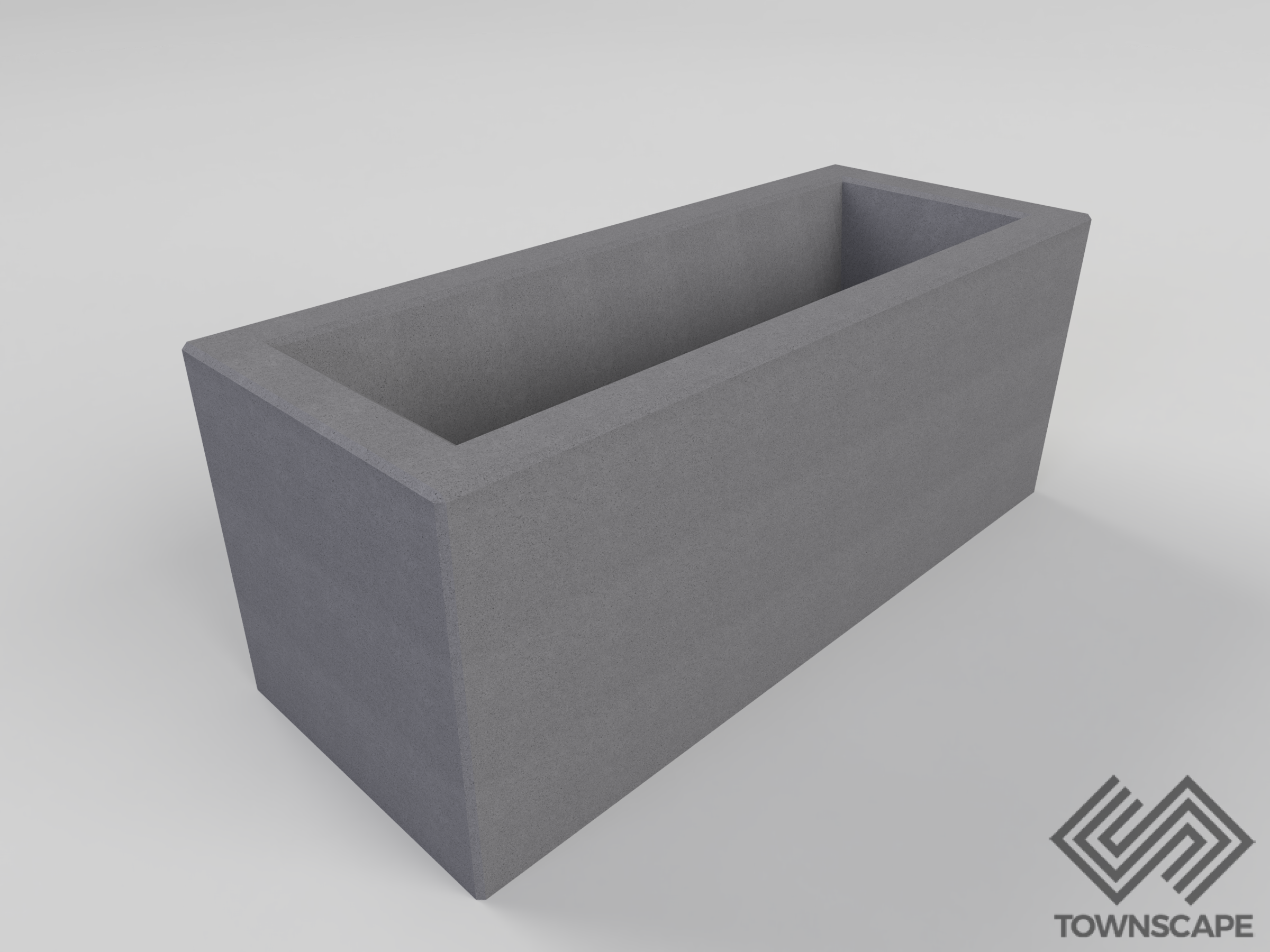

Counter Terror Block Vehicle Defence Barrier Planter 3000mm with 15mm Chamfer edges as standard. A variant of this product has been tested to PAS 68:2010 achieving the following classifications:

30mph test – single block: V/7500/N2/48/90/6.6/0.0

40mph test – single block: V/7500/N2/64/90/12.3/2.2

And PAS 68:2005 tested to the following classification:

30mph test comprising 3 staggered blocks: V/7500/N2/48/60/2.0/0.0

(Tested block size 1490 x 990 x 600mm)

This product is available in a range of Artisan  Premier smooth and exposed aggregate finishes. Please select colour / finish when specifying.

Installation
Fit PAS 68 elements to specialist instructions. Lift planter into position. Bolt planter to surface. Once positioning is correct lower liner over the PAS 68 elements into the planter. If required ensure below surface
drainage immediately adjacent to the PAS 68 Elements. Fit filter membrane to the plant liner. Add 150mm of pea shingle to the bottom of the liner. Add additional water reservoir if needed. Plant the liner using the specified medium and plants from the horticultural specialist. Ensure proper drainage underneath any surface mounted planters, e.g holes through the surface material deep enough to reach a permeable material
layer to allow water to percolate away.

Dimensions

If dimensions are critical please contact sales to confirm

Range Vehicle Defence
Installation 100mm
Materials Artisan Precast Concrete
Dimensions W x D x H 3000 x 990 x 1000mm
Height above Ground 900mm
Unit Weight 5400kg
