Description

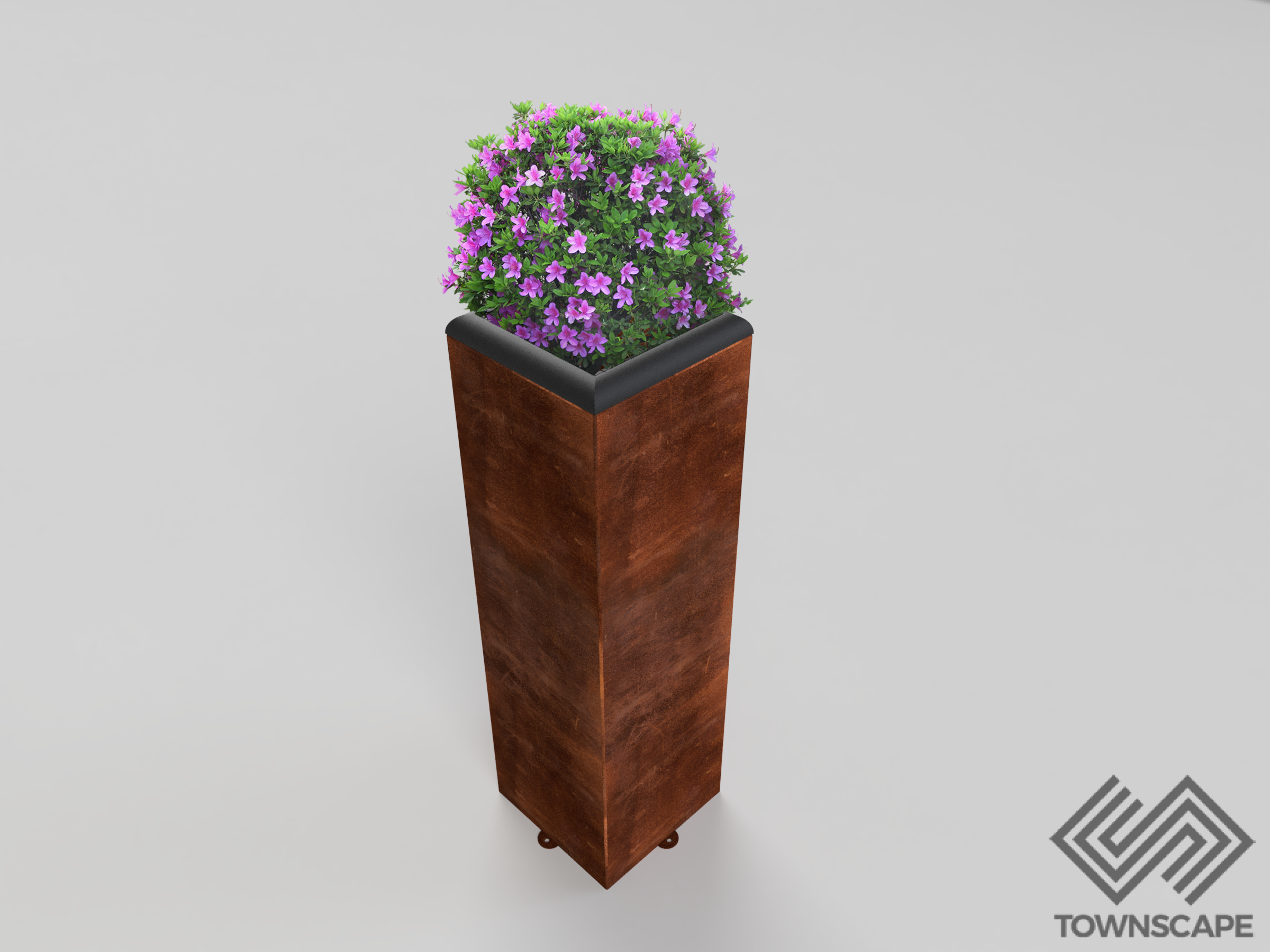

CT CORTEN Bollard planter Hostile Vehicle Mitigation Planter. The planter provides a minimum planting depth of 300mm x 180mm and is supplied with an integral planting liner, a small self watering reservoir and fitted with a CT 30 or CT40 PAS 68 Bollard.
The Townscape Counter Terror Bollards are PAS 68:2010 tested to the following classifications:

CT 30
30mph Test – Fixed Bollard: V/7500[N2]/48/90:0.0/0.0

CT 40
40mph Test – Fixed Bollard: V/7500[N2]/64/90:4.0/16.7

This planter can also be used to fit over existing CT30/CT40 Bollards

Installation

For advice about installation of this product, please contact our sales office.

Dimensions

If dimensions are critical please contact sales to confirm

Range Granite HVM Planter
Materials CORTEN
Dimensions W x D x H 400 x 400 x 1300mm
Height above Ground 1300mm
Unit Weight 15kg
