Description

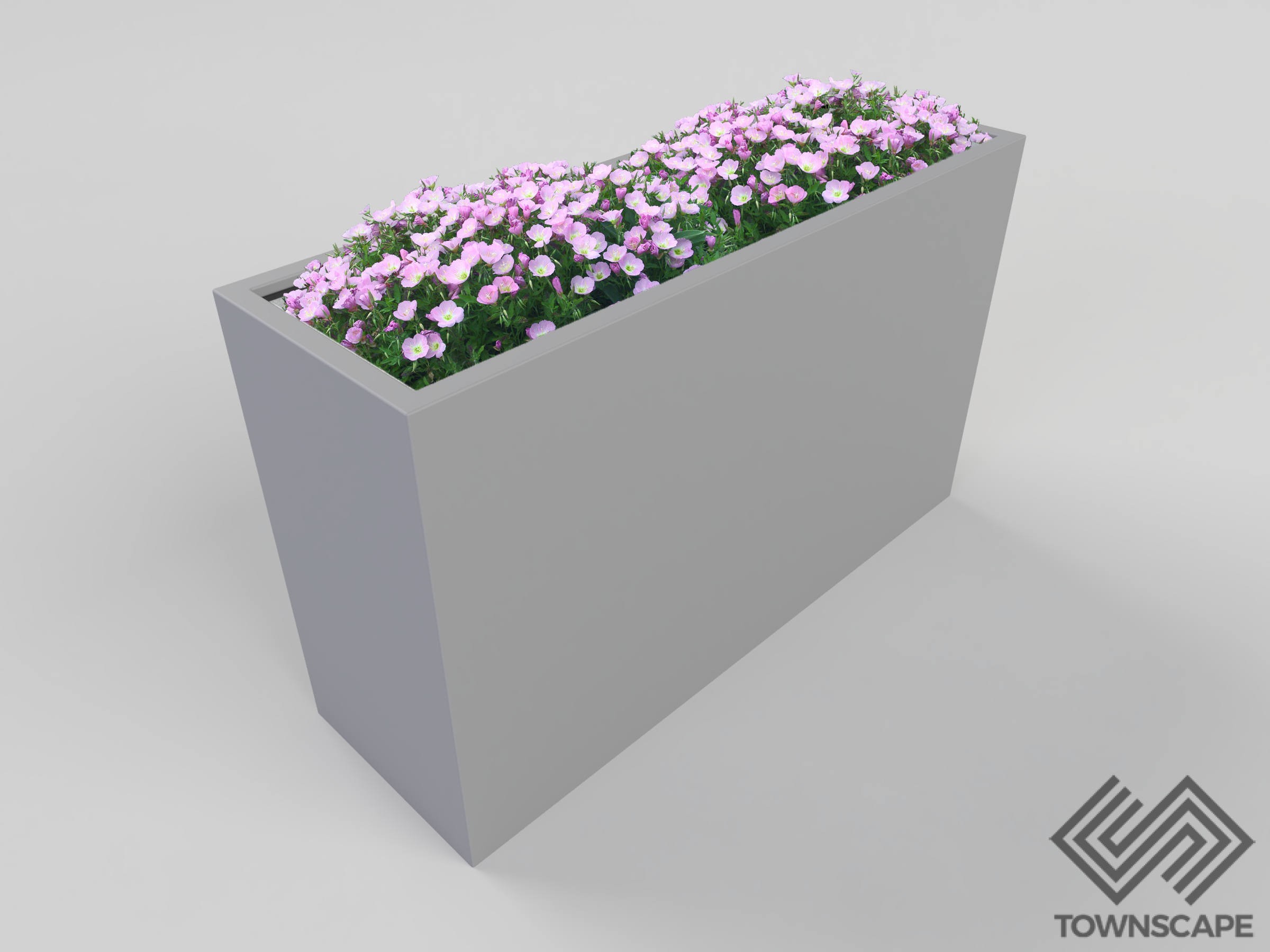

Victoria 40 Hostile Vehicle Mitigation Steel Planter, Standard Mount from 600mm. A robust planter in a choice of steel (see specification sheet), supplied with an integrated galvanised mild steel liner. The planter is fitted with 2no. CT40 N2/01 Counter Terror Bollards (Product ID: VED/0011) supplied. The Townscape Counter Terror Bollards in this product are PAS68:2010 tested to the following classification:

40mph Test: PAS 68:2010 V/7500/[N2]/64/90:4.0/16.7.

Bespoke sizing and Other RAL colours / finishes also available.

Installation

For advice about the installation of this product, please contact our sales office.

Dimensions

If dimensions are critical please contact sales to confirm

Range CT Victoria Planters
Installation PAS 68 depth 600mm
Materials Range of Steels
Dimensions W x D x H Planter 1838 x 600 x 1100
Height above Ground 1100
Unit Weight 440kg (all elements)



Material SKU Code
Corten VED/0502CS
PC Mild Steel  VED/0502PC
Brushed Stainless Stee VED/0502SS
PC Stainless Steel Profile VED/0502SSP
Aluminium VED/0502A
