PAS 68 Counter Terror Bollard CT40/N2/01 Ultra Shallow Mount 219

Description

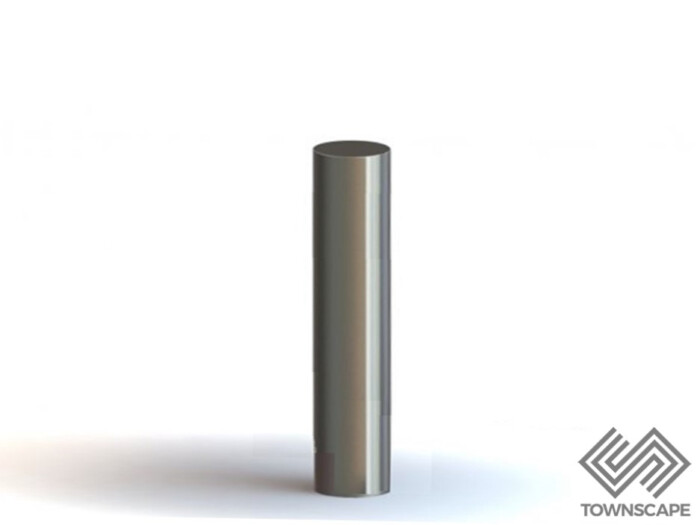

CT40USM N2/01 Mild Steel CT Bollard – 219mm – 125mm Ultra Shallow fit , 3 Bollard Array Galvanised Finish. The CT40USM N2/01 is a high security bollard designed to mitigate a vehicle attack at 64kph. The bollard has been successfully tested and approved by the CPNI. The normal spacing for bollards will be 1200mm. A reinforced foundation design will be required for this product. The product is PAS 68 approved to the following classifications:

40mph Test – Fixed Bollard: PAS 68:2010 V/7500[N2]/64/90:4.7/9.2

Additional cost sleeve options are available if required. These include Stainless Steel or Performa-cast Polymer (Standard or Bespoke Designs) Sleeves.

Installation

Specialist installation advice is available for this product

Dimensions

If dimensions are critical please contact sales to confirm
